Mining & Excavation Equipment Cylinders
Heavy-duty hydraulic cylinders designed for mining dump trucks, underground loaders, drilling rigs and excavation machinery. Built to withstand extreme loads, dust, vibration and temperature variations.
Mining & Excavation Equipment1 series
6 product photos

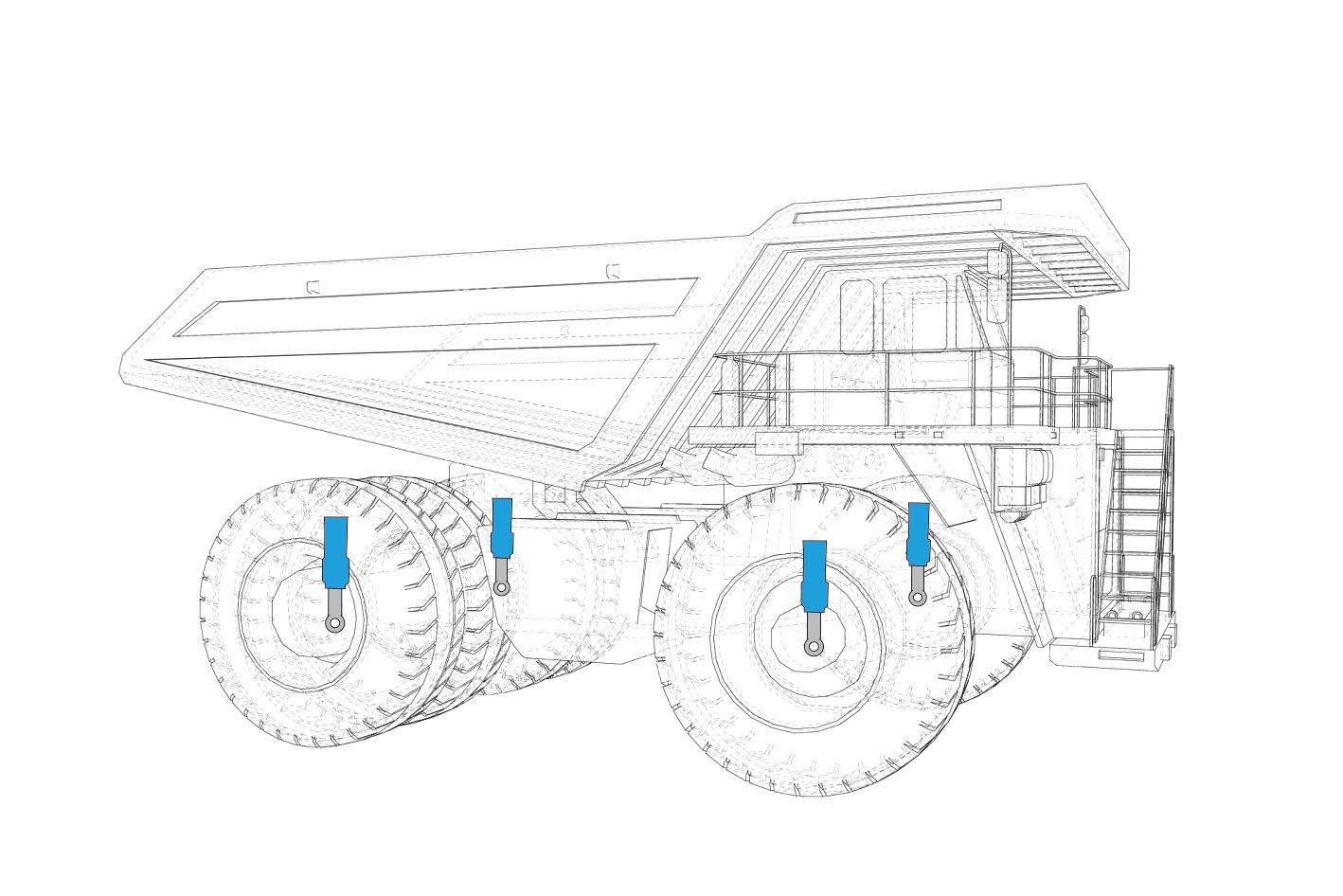

Mining Dump Truck Hydraulic Cylinders
Front suspension, rear suspension, lift, steering cylinders and piston accumulators for heavy-duty mining dump trucks. Designed for extreme loads and harsh mining environments.
Bore Range:100-500mmStroke:CustomMax Pressure:42 MPaDesign:Heavy-Duty Mining
Series Advantages
Special structural design with high-strength materials for fatigue durability under high pressure and heavy loads
Piston rods with special surface treatment for excellent wear and corrosion resistance
Heavy-duty seals selected for harsh mining conditions
Wide series integrated guide rings with strong lateral force resistance
Custom stiffness and damping curve design for suspension cylinders
Built-in buffer structure available for lift cylinders to prevent impact during raising/lowering
Product Photos

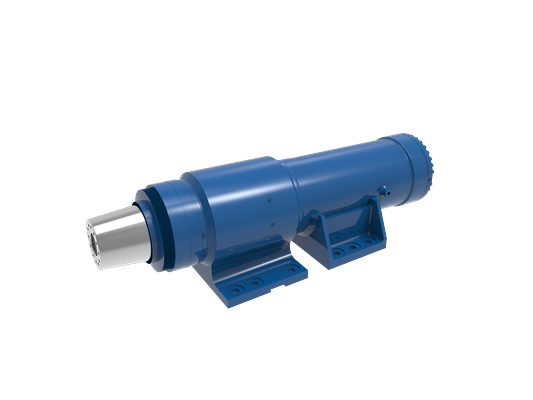

Front Suspension Cylinder

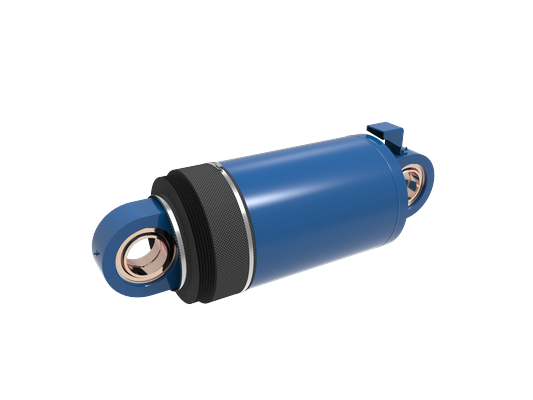

Rear Suspension Cylinder

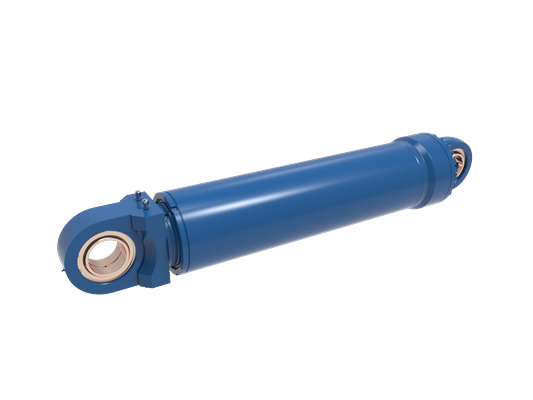

Lift Cylinder

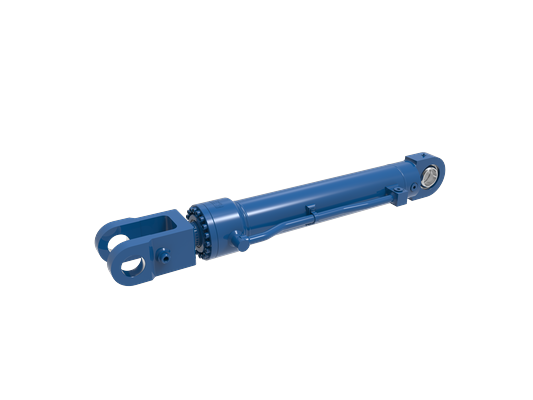

Steering Cylinder

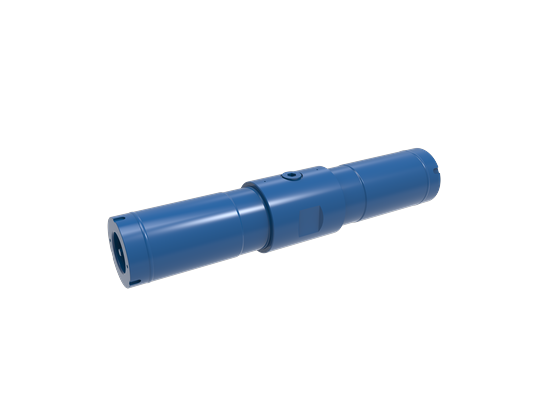

Piston Accumulator
Need Mining Hydraulic Cylinders?
Contact us with your mining equipment model, cylinder type and technical specifications.
