Metallurgy & Metal Forming Cylinders

High-temperature hydraulic cylinders for continuous casting machines, ring rolling mills, forging presses and heavy metallurgical equipment. Built for reliable performance in extreme industrial environments.

Metallurgy & Metal Forming2 series

9 product photos

Continuous Casting Machine Hydraulic Cylinders

Ultra-long internal guide hydraulic cylinders for aluminum continuous casting machines. Diameter 80-380mm, length up to 13 meters, with precision machining straightness of 0.02mm/m.

Diameter:80-380mmMax Length:13 metersStraightness:0.02mm/mApplication:Casting Machines

Key Features

Ultra-long stroke design for aluminum billet negative pressure casting systems

Precision internal guide structure ensuring stable linear motion

Advanced sealing system for high-temperature molten metal environments

Ni/Cr electroplating and laser cladding surface treatment options

Full-stroke load testing before delivery

Custom diameter and stroke according to casting machine specifications

Product Photos

Internal Guide Cylinder

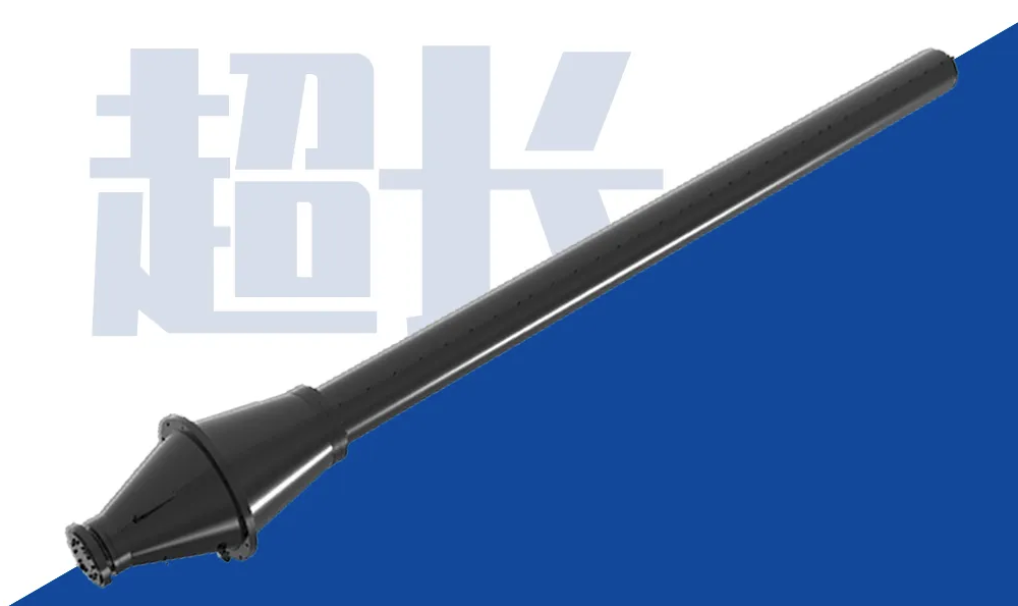

Casting Process

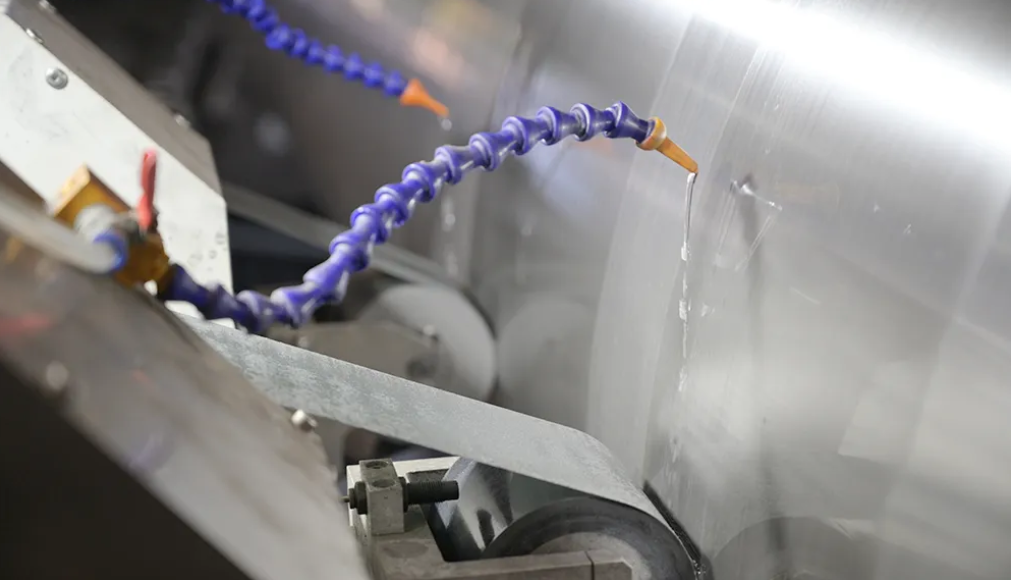

Rod Machining

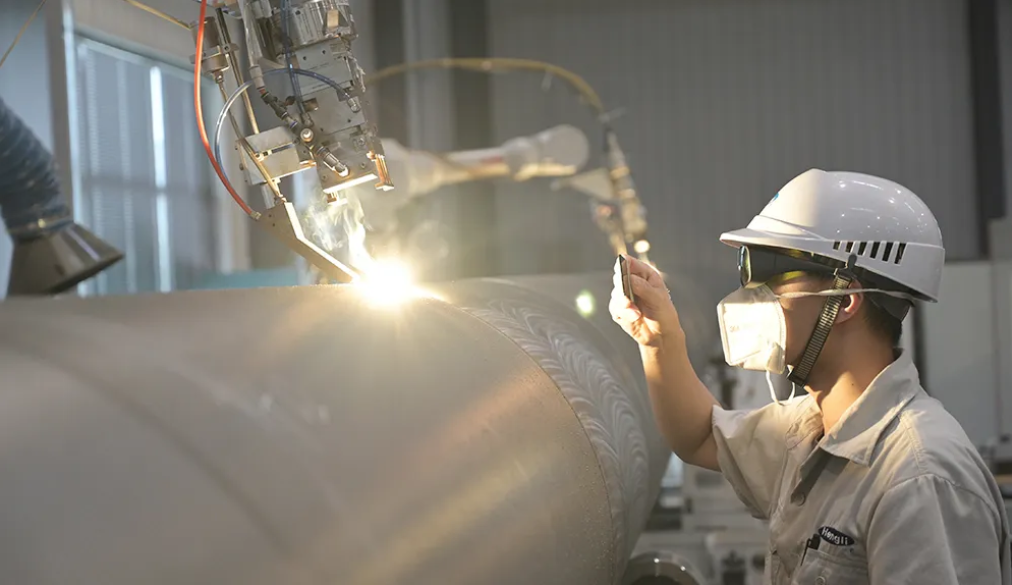

Laser Cladding

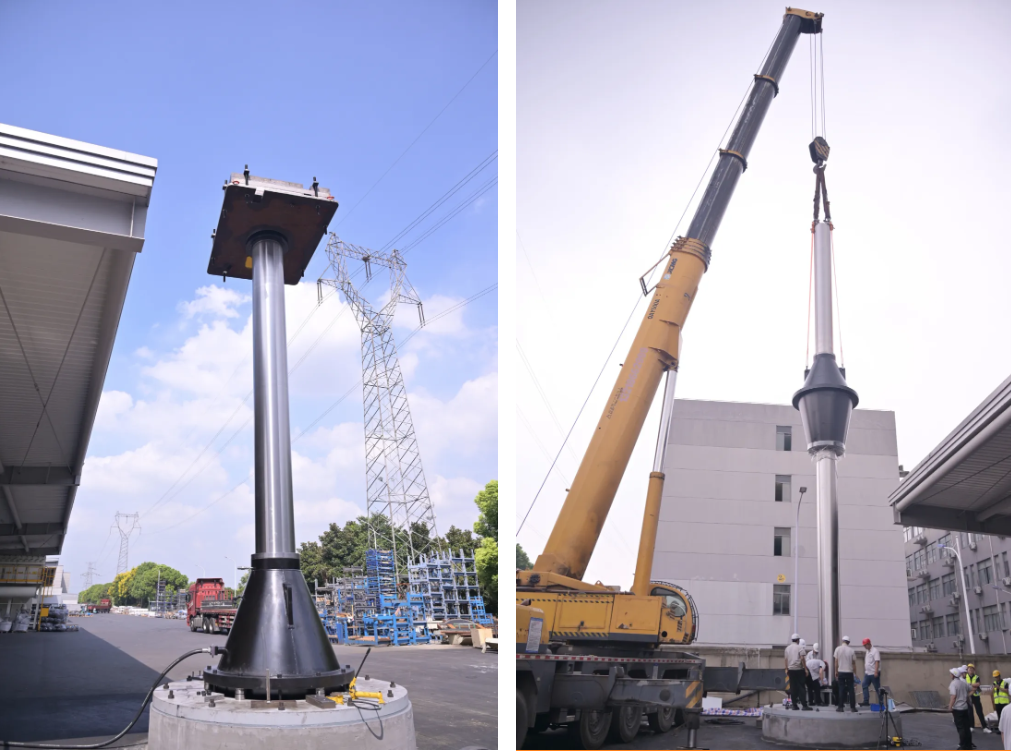

Load Testing

Ring Rolling Mill Hydraulic Cylinders

Heavy-duty cylinders for the world's largest ring rolling mills. 22-meter and 15-meter mill configurations with dual-stage buffering and synchronized guide structures for micron-level precision.

Mill Size:15-22 metersPressure:up to 35MPaPrecision:Micron-levelDesign:Dual-Stage Buffer

Key Features

Dual-stage buffering + synchronized guide structure for ultra-precision

Reinforced cylinder body designed for extreme rolling forces

Fire-resistant hydraulic fluid compatible seals

Position sensors and real-time feedback integration

Special high-temperature seal materials for hot rolling environments

Third-party inspection and certification available

Product Photos

22m Mill Cylinder

Cylinder System View

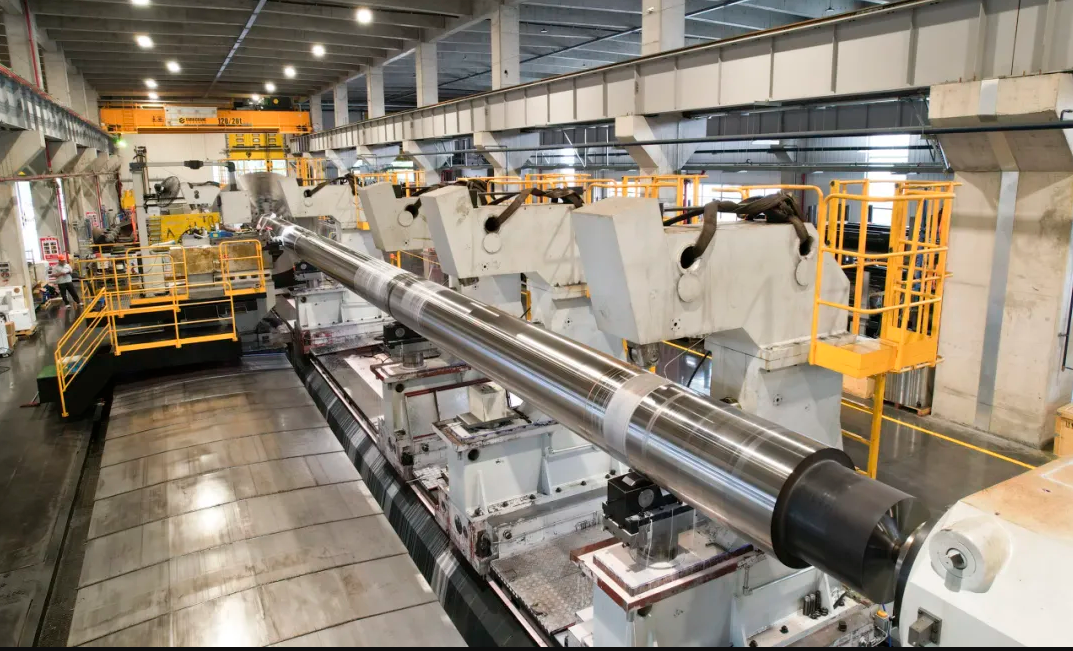

Cylinder Detail

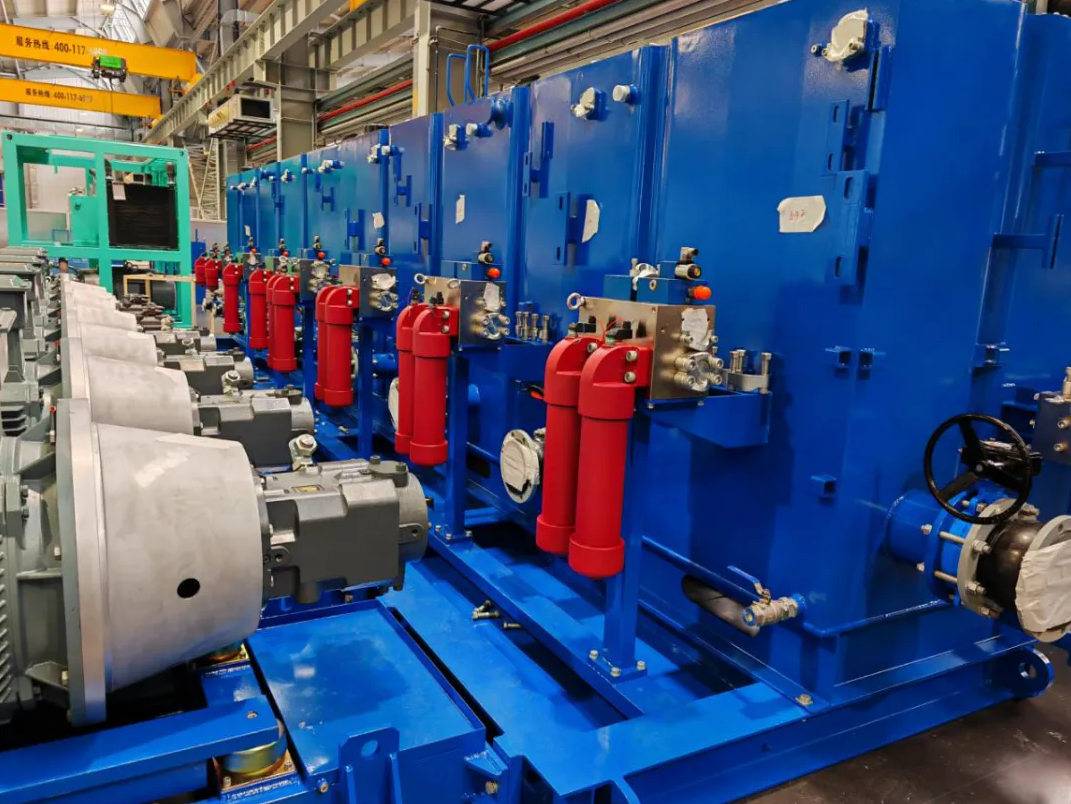

15m Compact Cylinder

Need Metallurgy Hydraulic Cylinders?

Send Inquiry Back to Categories
